GW-UNI / GW-UNI/P1

Description

Connecting E-PoC & P1 PoC systems to existing radio systems

Easy-to-install, low-cost gateway enables you to significantly extend the range of, or migrate from, existing radio systems.

Everything you need to know

  • Extend the range and capabilities of almost any radio system (including Capacity Plus / Max, Tetra, P25 etc.)
  • Existing radio systems will benefit from E-PoC’s / P1’s  extensive range of software and devices:
    • DN400 Series 4G LTE PoC Radio
    • E-PoC / P1 Smartphone Application – iOS / Android
    • E-PoC / P1 PC Dispatcher
    • E-PoC / P1 Android Dispatcher
    • E-PoC / P1 Recorder
  • Enables easy and low cost migration from existing radio systems to POC.
  • Scalable to meet the demands of more complex systems.

Installation in just three easy steps

  1. Power up
  2. Connect to the internet via ethernet or Wi-Fi
  3. Programme Gateway 3.0 over-the-air (OTA) via Entel’s secure web portal

In less than 5 minutes, networks are integrated and ready to use.

KEY FEATURES

  • Simple hardware interface to your radio (Audio in/out, PTT & RX active)
  • Links Entel PoC systems to almost any other type of radio systems
  • Over the Internet (OTI) programming & updates – Entel’s Gateways can be re-programmed / updated without ever having to visit site saving considerable time and expense as well as delivering a far superior customer support experience
  • Ethernet and WiFi connectivity
  • Entel APK Store support
  • Auto switch over to WiFi if Ethernet fails – as a fall back to a wired Ethernet network the Gateway can automatically connect to a WiFi network including a simple 4G WiFi hotspot or tethered to a smartphone.

We are releasing new features all the time, if there is a feature you require that is not already listed above please give us a call.

GW-UNI / GW-UNI/P1
GW-UNI / GW-UNI/P1

Technical Specification

Radio Interface

Audio Input

Vin max = 3Vrms
Vin typ = 0.7Vrms
Vin min = 0.1Vrms
Load >1kOhm
Differential input into Gateway

Audio Output

Vout max = 0.5Vrms (100%)
Vout typ 0.1Vrms (60%)
Differential ouput from Gateway

PTT Digital Output

Active low during PTT
Open drain output without pull up in Gateway

Valid Receive Digital Input

Active high during RX
Vhigh_min > 1.5V
Vhigh_max < 5.5V

General

Wired LAN

RTL GB LAN

Wireless LAN

802.11 b/g/n

Operating Voltage

12VDC / 100 - 240VAC 50 / 60Hz

Overall Dimensions (HxWxD)

45mm x 275mm x 178mm

Weight

1.58Kg

GW-UNI / GW-UNI/P1

Video

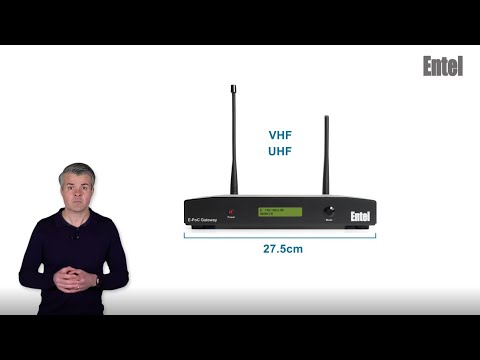

Youtube Video
